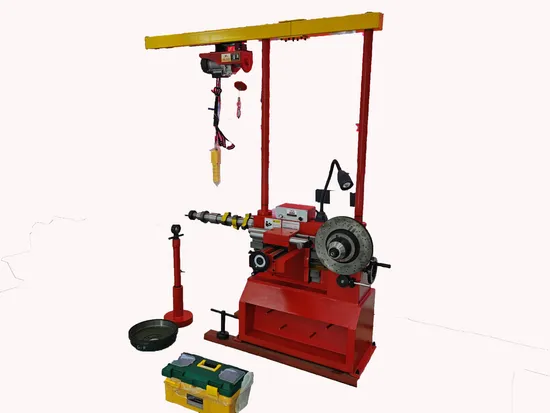

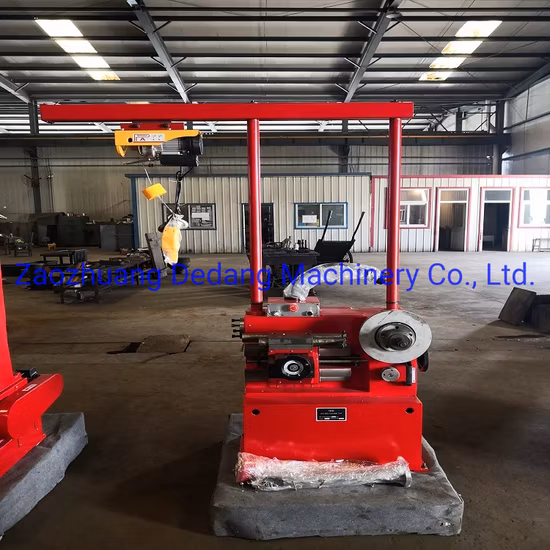

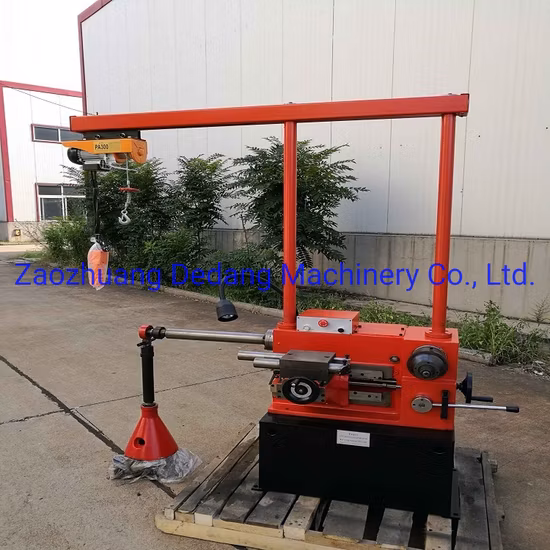

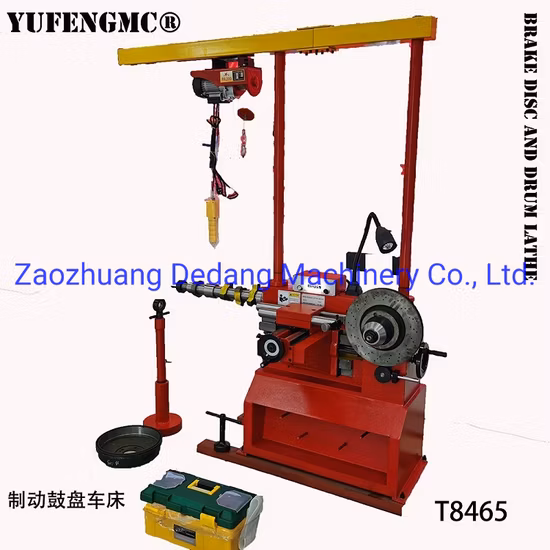

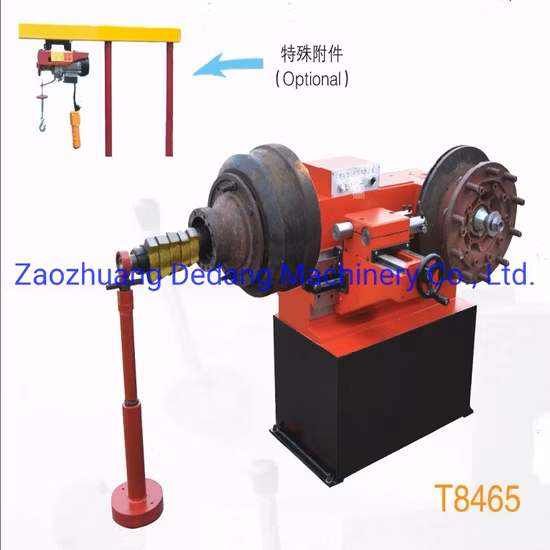

Two Spindle Brake Drum Disc Lathe Brake Disc Brake Drum Cuttingmachinet8465

1. "Replacement adapter" system eliminates the need for traditional bell clips and cones. 2. Continuously variable spind

Description

BRAKE DRUM AND DISC LATHE	T8445/T8445A	T8465
DRUM DIA	180-450MM	180-650MM
DISC DIA	102-400MM	102-520MM
CUTTING TRAVEL	190MM	265MM
SPINDLE SPEED	20,52,85RPM	20,52,85RPM
FEED SPEED	0.16MM	0.16MM
MAIN MOTOR	1.1KW	1.1KW
MACH WITH LIFTING UNIT	11008701000MM	158010201050MM 188010201970MM
PACKING SIZE WITH LIFTING UNIT	9009301100MM	102010651100MM 142010651100MM
G WEIGHT /N.W	350/290KG	530/470KG

1. "Replacement adapter" system eliminates the need for traditional bell clips and cones.

2. Continuously variable spindle and cross feed speed set for fast rough and fine finishing.

3. Precision double cutter and fast drum to rotor conversion help improve your service capability.

4. Dc motor designed to meet the requirements of industrial motion control.

5.Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
