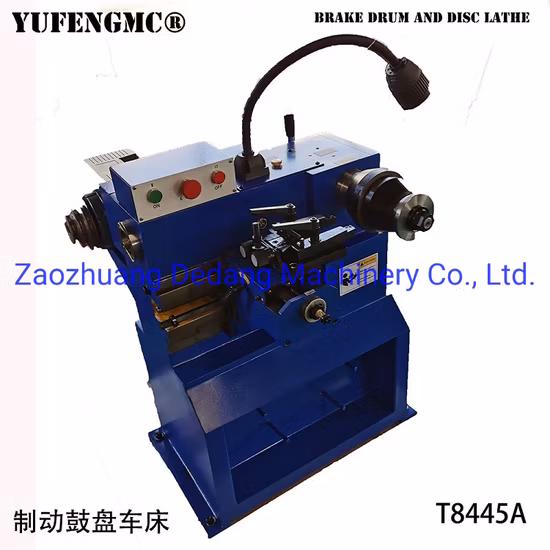

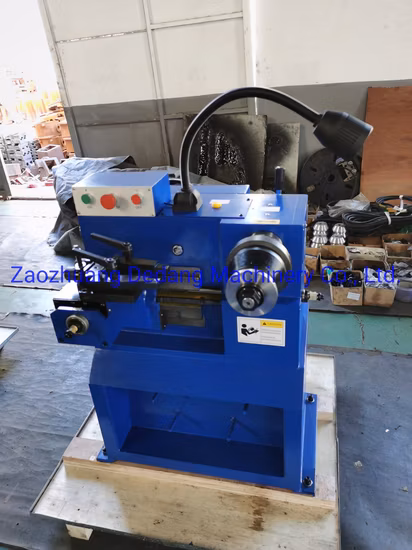

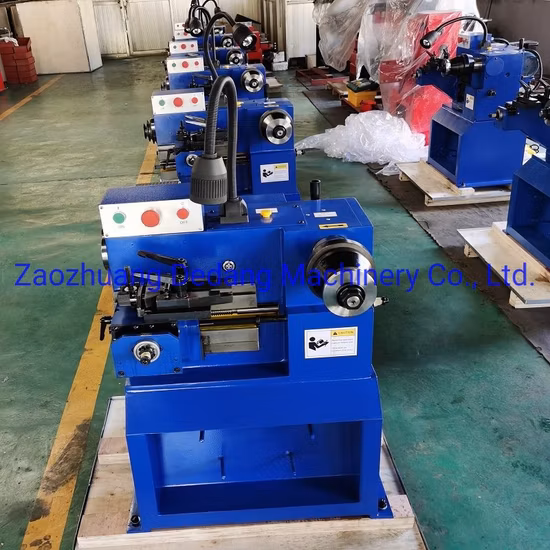

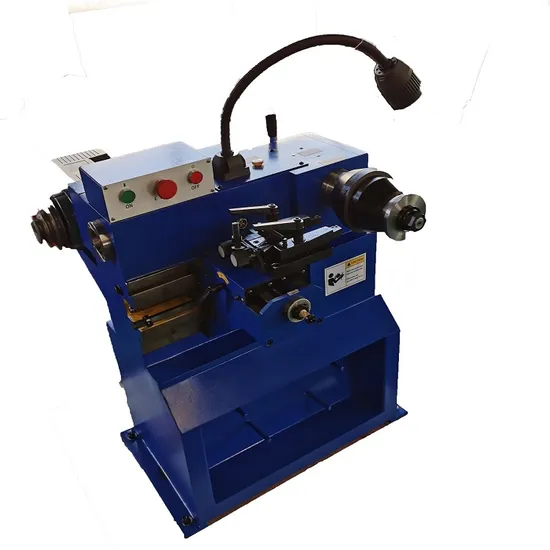

Brake Drum Disc Lathe Two Spindle Brake Disc Brake Drum Cutting Dt8445A
1. "Replacement adapter" system eliminates the need for traditional bell clips and cones. 2. Continuously variable spind
Description
Basic Info
Model NO. | T8445A |
Warranty | One Year |
Transport Package | Export Package |
Specification | 900*930*1100MM |
Trademark | YUFENGMC® |
Origin | Zaozhuang City |
HS Code | 8458190000 |
Production Capacity | 500unit/Year |
Product Description
BRAKE DRUM AND DISC LATHE | T8445/T8445A | T8465 |
DRUM DIA | 180-450MM | 180-650MM |
DISC DIA | 102-400MM | 102-520MM |
CUTTING TRAVEL | 190MM | 265MM |
SPINDLE SPEED | 20,52,85RPM | 20,52,85RPM |
FEED SPEED | 0.16MM | 0.16MM |
MAIN MOTOR | 1.1KW | 1.1KW |
MACHINE SIZE WITH LIFTING UNIT | 1100*870*1000MM | 1580*1020*1050MM 1880*1020*1970MM |
PACKING SIZE WITH LIFTING UNIT | 900*930*1100MM | 1020*1065*1100MM 1420*1065*1100MM |
G WEIGHT /N.W | 350/290KG | 530/470KG |
1. "Replacement adapter" system eliminates the need for traditional bell clips and cones.
2. Continuously variable spindle and cross feed speed set for fast rough and fine finishing.
3. Precision double cutter and fast drum to rotor conversion help improve your service capability.
4. Dc motor designed to meet the requirements of industrial motion control.
5.Positive rake cutter tip angle provides for a one pass finish virtually every time,allowing you to complete your work fast.
